SUSPENDED PERMANENT MAGNET

INTRODUCTION

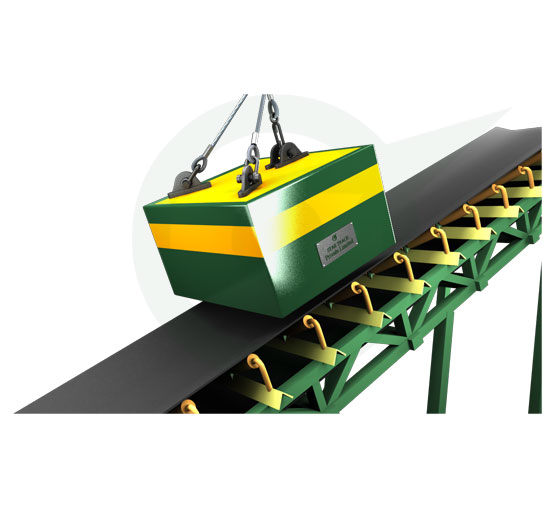

Star Trace Suspended Permanent Magnets are designed for high separation performance in over-the- belt conveyor applications. These heavy duty permanent magnets incorporation all welded construction are particularly effective in removing tramp metal in high volume applications.

Produces strong magnetic field attraction. The separator body adopts rare earth permanent magnetic materials featuring high remanence, high coercivity and high magnetic energy as magnetic source. The magnetic property is persistent with high temperature stability.

The magnetic steel is chosen from the national famous magnetic material enterprise (national inspection-exempted product) with high purity material and advanced manufacturing process to ensure the magnetic property will not affected by ambient temperature and mechanical vibration.

The magnetic material is electroplated on the surface, and assembled with particular clamp by special man, to minimize the difference and make strict anticorrosion treatment. This series links up with transportation equipments such as all types of belt conveyers, vibration conveyers and charging pipelines to form a complete set to remove the iron magnetic materials under weight of 0.1~0.5kg mixed among the non-magnetic materials to ensure normal & safe operation of the next-step equipment (such as muller, crusher, etc.).

This series of products are widely applied for cement industry, power industry, ore industry, ceramic industry, non-metallic ore industry, metal industry, chemical industry, glass industry, paper-making industry, building industry, sugar refining industry, pharmaceutics industry, food industry and so on. This product series can run under adverse environments without failure for a long time.


APPLICATIONS OF SUSPENDED PERMANENT MAGNET

Star Trace Suspended Permanent Magnets are designed for high separation performance in over-the- belt conveyor applications. These heavy duty permanent magnets incorporation all welded construction are particularly effective in removing tramp metal in high volume applications.

Suspension Electro Magnet

Typical Applications are:

  • Removal of ferrous materials in mining operations.
  • Separation of ferrous contamination in quarries.
  • Magnetic extraction of ferrous particles in wood processing.
  • Recover ferrous metal in waste management process.

It used in wide applications like

  • Cement industry.
  • Power industry.
  • Ore industry.
  • Ceramic industry.
  • Non-metallic ore industry.
  • Metal industry.
  • Chemical industry.
  • Glass industry.
  • Paper-making industry.
  • Building industry.
  • Sugar refining industry.
  • Pharmaceutics industry.
  • Food industry.

FEATURES OF SUSPENDED PERMANENT MAGNET

Star Trace Suspended Permanent Magnets are designed for high separation performance in over-the- belt conveyor applications. These heavy duty permanent magnets incorporation all welded construction are particularly effective in removing tramp metal in high volume applications.

Magnetic Head Pulley Features

The following are the features of SUSPENDED PERMANENT MAGNET:

  • Permanent magnet field.
  • No electrical hook ups.
  • Compact design.
  • Heavy duty impact plate.
  • Stainless steel angled cleats.

Options:

  • Stainless steel plates.
  • Turn buckles.
  • Easy clean stripper pan.
  • Suspension kit for fixed mounting to conveyor frame.

Selection:

Selection this type magnetic separator depends on the

  • Feed material.
  • Size.
  • Feed depth.
  • Depends on width and speed of your belt conveyor.

Specification Of Suspended Permanent Magnet

Model No Belt width(mm) Suspension height(≤mm) Materials Thickness(≤mm) Weight(kg) Belt speed(≤m/s) Overall dimension(mm)
A B C
STPS-115 400 125 60 115 4.5 400 300 230
STPS-65 400 75 30 65 4.5 400 250 140
STPS-206 500 150 90 206 4.5 500 350 260
STPS-96 500 100 50 96 4.5 500 260 160
STPS-295 600 175 120 295 4.5 600 450 280
STPS-158 600 130 60 158 4.5 600 350 180
STPS-450 650 200 150 450 4.5 650 600 300
STPS-450 650 200 150 450 4.5 650 400 300
STPS-680 800 250 200 680 4.5 950 950 380
STPS-550 800 200 150 550 4.5 800 600 300
STPS-1180 1000 300 250 1180 4.5 1100 1000 380
STPS-1670 1200 350 300 1670 4.5 1300 1340 420
STPS-2350 1400 400 350 2350 4.5 1500 1500 420
STPS-2850 1600 450 400 2850 4.5 1750 1750 460
