PISTON IMPACTOR

Print this page
Increase Font Size Toggle Font Size '+' or '-' Decrease Font Size

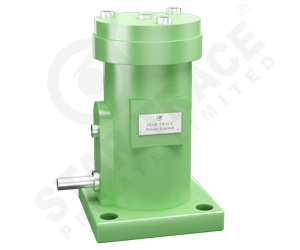

Piston impactors

APPLICATIONS

"STAR TRACE" Piston Impactors are developed to cater to applications Requiring linear pulsating forces.They are used to promote flow from small hoppers, Down feed Pipes & Chutes.


FEATURES:
  • Inexpensive/easy to install and maintenance free.
  • Can be used in Hazardous areas.
  • Self cooling suitable for temperature upto 200 Deg.
  • Adjustable frequency and Vibration Amplitude.
  • Easy Mounting.

PRINCIPLE OF OPERATION:

Air Impactor Is Pneumatic Piston Oscillator. Piston is made to Oscillates by the changing Direction of flow. The Piston Mallets Continuously at one end while it is Cushioned at the other.

Since Impact has a high energy please rate . It is effective in Dislodging stubborn material build-UPS.

Impact produces considerable noise. But the Vibrator is run in short bursts and used for used for remote open air installations.

This type of impactor works very well where traditional methods of malleting and poking the material are used.

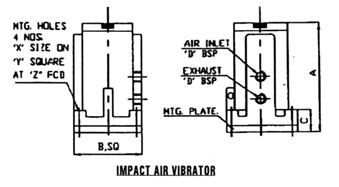

Impact air vobrator

Model
A
B
C
D
X
Y
Z
Performance at 4 Barg
Impact Force N/FERQ VPM/Free Air LPM
STPK-20
92
55
16.5
1/8'
M8
40
56.5
3540/500/85
STPK-31
140
85
27
1/4"
M12
60
84.9
13150/3700/1700
STPK-45
216
135
48
3/8"
M20
95
134.4
32200/2050/250
