Mud Sand Separator

Star Trace offers a range of Mud Sand Separator which are widely used across various industrial applications. These wide range of products are manufactured according to industrial quality and standards. Backed by our excellent engineering and quality control team, we are able to satisfy the client requirement for various engineering products all over the world. With more than 25 years of experience in this field, we have been supplying technically accurate and superior products to our clients and have catered to the requirement of variety of sectors and clients.


Mud sand separator is widely used in the purification and recycling of slurry for the construction of hydropower, continuous concrete wall, slurry shield tunnel, etc. the equipment is increasingly becoming a necessity of civilized construction since it not only can cut down construcion cost, but also can reduce the pollution of the environment


Work Principle:

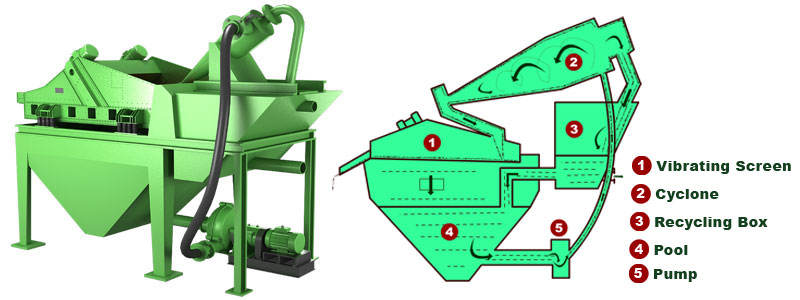

The system is composed of motor、pump、Cyclone、vibrating screen、Pool、Recycling Box. The compound of sand and water is transported to cyclone,the sand that centrifugal classification concentrate provided to the vibrating screen by the heavy grit, sand and water are effectively separate after vibrating screen dehydration. Through Recycling Box,fine sand and mud and so on returned again to the pool,then they are exhausted from the exit when the liquid surface of pool is too hight.The material weight concentration recovered by the vibrating screen is 70%- 85% adjusting fineness module may come true by changing the pump rotation rate, changing pulp concentration, adjusting the flooding water yield ,changing the grit mouth,then fulfilling its three kinds function—washing, dehydration and screening.

Features and Benefits:
  • Effectively reduce the fine sand losing quantity,and make it in the scope of 5~10% .
  • The vibrating screen utilizes polyurethane screen cloth, which has longer life compared with others and uneasy to be blocked.
  • Inner the polyurethane, strengthen the whole device service life, it can smoothly finished the work of condensing slime and clearing the liquid etc.
  • The maximum fine grain materials quantity recovered from the total effluent is 85%, so it has unsurpassed technology and economic advantage compared with other equipments.
  • The find sand are recovered sufficiently, you can reduce the sedimentation basin workload and low its clean cost.
  • Reducing nature stock time of the fine material, they can be transferred directly and supplied to the market.
  • We can design corresponding solve project according to our consumers, different requirements.
