DEMAGNETIZER

Print this page
Increase Font Size Toggle Font Size '+' or '-' Decrease Font Size

Demagnetizer

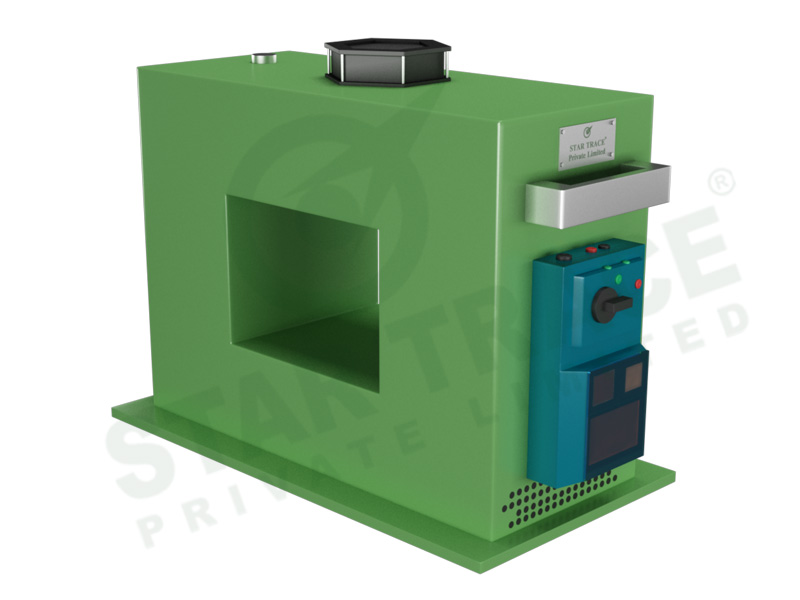

Features of Tunnel Type
  1. Super efficiency in demagnetizing and magnetizing suitable for any kinds of metals.
  2. Merely using tools to pass through or move into a tunnel will cause a good effect.
  3. Suitable for planned automatic process be adapted for delivery belts to proceed in order to increase productivity.
  4. Suitable for large production of component spare parts, attachments, tools, etc.
  5. Suitable for hand manual tools, etc. for filling magnetism.
  6. Attached a fan inside for dissipating heat.
  7. Special specifications will be made subject to customer’s requirements.

Demagnetizer

POWER SOURCE CAPACITY DITY CYCLE DIMENSION GATE NET WEIGHT
L W H A B
AC 220/330 V (Single Phase) 3250 VA 100% 370 370 200 100 150 50 Kg
4540 VA 470 370 200 150 250 55 Kg
AC 220/330 V(3 Phase) 4500 VA 720 520 200 270 470 140 Kg

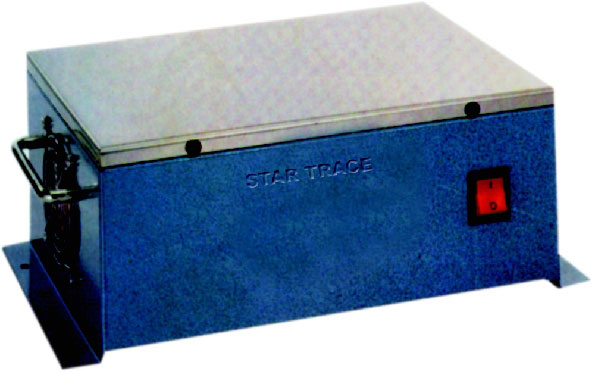

PLATE TYPE

Plate Type

Features of Plate Type

Plate Type are Suitable for general component spare parts, attachments, tools, etc. For fixed way demagnetization. After operating by 20 mins, it must be turned off for 20 mins. Automatic Temperature Protection : When temperature reaches to the setting point, the power will be off automatically, and then it will restart to work.




MODEL 59

Demagnetizer

MODEL - 59 Suitable for long time use; be able to use continuously for 24 hours With design of double coil inside to avoid heat release.

MODEL POWER SOURCE CAPACITY DITY CYCLE DIMENSION NET WEIGHT
L W H
STDM AC 110/220 V  220 VA 50% 127 180 90 4.0 Kg
ST-59 AC 230 V 330 VA 100% 720 520 200 8.5 Kg



MODEL 200

Demagnetizer

Features of Model 200
  1. MODEL 200 Suitable for general component spare parts, attachments, tools, etc, for fixed way demagnetization.
  2. Suitable for longtime use : Be able to use continuously for 24 hours.
  3. With the design of double coils inside to avoid heat release.



MODEL 280

Demagnetizer

Features of Model 280
  1. MODEL 280 Suitable for large production of component spare parts, attachments, tools, etc. for fixed way demagnetization.
  2. Suitable for longtime use ; be able to use continuously for 24 hours.
  3. Be adapted for delivery belts to proceed automatic demagnetization.
  4. Use for wide range : very effective.
  5. Attached a fan inside for dissipating heat.
  6. Special specifications will be made subject to customer's requirements.
