Barrel Grate Seperators

Print this page
Increase Font Size Toggle Font Size '+' or '-' Decrease Font Size

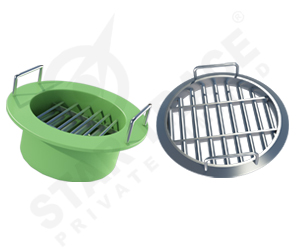

Barrelgrate separator

This separator provides 'Final Magnetic Action' on bulk foods. Chemical, pharmaceuticals, etc, being packaged in barrels similar type containers.

These units are the result of many requests for a portable type magnetic separator for use in a final separating action as materials of large containers.

The bank of grate magnets are placed in the housing in a staggered position and lock into place with the support bars fitted into the grooves of the preceding grate.

A unit of standard construction has stainless steel tubes with mild steel frame, flange and handles. On stainless steel units the frame, flange and handles are also of stainless steel.


Technical Specifiaction

MODEL STBG Magnet Size (mm) Magnetic Tube Center Collar TK
STBGA 400 50 mm 6 mm
440
510
STBGB 400 40 mm 6 mm
440
510

Barrel grate separator
